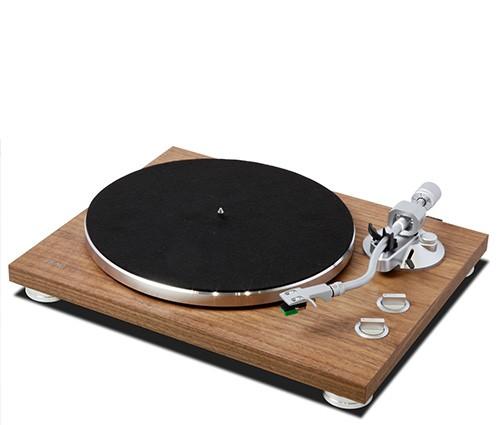

TEAC TN-400BT-X Analogue Turntable with Bluetooth® aptX® Transmitter

Elevate your home audio setup with the TN-400BT-X Turntable Deluxe Bundle, featuring the latest in vinyl technology paired with cutting-edge Bluetooth connectivity.

Immerse yourself in the rich, warm tones of vinyl while enjoying the convenience of wireless streaming. Experience the perfect blend of classic charm and modern convenience with the TN-400BT-X Turntable Deluxe Bundle.

• Aluminium Die-Cast Platter with 3-Speed Belt-Drive: A die-cast, high-inertia aluminium platter is driven by a high-torque DC motor via a durable rubber flat-belt, giving immensely stable playback at 33-⅓, 45 and 78 rpm speeds.


• New Low-Resistance Spindle :A precisely-machined stainless steel spindle and durable brass bearing maintain accurate rotational speed, thanks to reduced friction.


• Natural Walnut Veneer Finish with Laser-Engraved Logo: The TN-400BT-X is available in natural varnished walnut veneer finish with laser-engraved TEAC logo.


• Built-in Phono EQ amplifier: The TN-400BT-X has an onboard Phono EQ amplifier that supports MM-type cartridges, allowing the deck to be connected to conventional amplifiers/micro systems that lack a dedicated turntable input. The Phono EQ amplifier employs a hi-fi quality NJM8080 op-amp chip (designed by JRC) which amplifies the tiny audio signal from the stylus with the minimum of distortion.


• S-shaped static-balanced tone-arm: The S-shaped, static-balanced aluminium tone-arm is equipped with a counterweight and anti-skating mechanism that allow an exact setting of balance as well as tracking pressure, ensuring accurate tracking during playback.

  A tone-arm lifter is also fitted for smooth lowering of the tone-arm onto records.The tone-arm takes universal-type headshells so users can change cartridges with relative ease.

  In order to reduce signal losses between the tone-arm and the headshell, gold-plated contact points are employed, to help deliver an uncorrupted audio signal.


• Bluetooth® Wireless Audio Streaming with Qualcomm® aptX™ Adaptive Codec: The TN-400BT-X's Bluetooth® wireless transmission system supports the higher quality Qualcomm® aptX™ Adaptive codecs, as well as the conventional SBC codec.

  This means that even if users don't have a hi-fi system, then can still enjoy truly high-quality vinyl replay via Bluetooth®-equipped headphones or speakers. Connecting the TN-400BT-X to Bluetooth® headphones or speakers is achieved very simply, at the touch of a button.

  A single-function pairing key and an associated LED indicator provide simple and clear confirmation of the connection status.


• Beautifully Detailed: The TN-400BT-X brings elegance to the process of playing a record. The machined aluminium operation knobs ooze quality while the aluminium feet, attached to high-density MDF chassis via shock-absorbing rubber, provide a high resistance to feedback.


• MM-type Cartridge from Audio-Technica: The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminium cantilever, which helps deliver an accurate, highly musical standard of playback.


• MM-type Cartridge from Audio-Technica: The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminium cantilever, which helps deliver an accurate, highly musical standard of playback.

Turntable Section

• Type: Belt Drive
• Motor: DC Motor
• Rotation Speeds: 33-⅓, 45, 78 rpm
• Wow-and-Flutters: 0.2%
• S/N Ratio: more than 67dB (A-weighted), 60dB (unweighted, 20kHz, LPF)
• Turntable (Platter): Material Aluminum Die-cast, Diameter 30cm

Tone-arm Section

• Type: S-shaped, Static-balanced
• Effective Length: 223mm
• Needle Pressure Range: 0g to 5g
• Compatible Cartridge Weight: 4g to 8g, 14g to 18g (including Head-shell)

Head-shell and Cartridge Sections

• Model of Cartridge: audio-technica AT95E
• Type of Cartridge: MM-type (VM-type)
• Frequency Response: 20Hz to 20,000Hz
• Output Voltage: 3.5mV (1kHz, 5cm/sec.)
• Channel Separation: 20dB (1kHz)
• Output Balance: 2.0 dB (1kHz)
• Needle Pressure: 1.5g to 2.5g (appropriate value: 2.0g)
• Needle Life: approx. 300 hours (depends on conditions)
• Coil Impedance: 2.8kohms (1kHz)
• DC Resistance: 410ohms
• Loading Resistance: 47kohms
• Loading Capacity: 100 to 200pF
• Coil Inductance: 400mH (1kHz)
• Static Compliance: 20 × 10-6cm/dyne
• Dynamic Compliance: 6.5 × 10-6cm/dyne (100Hz)
• Needle Shape: Joint-oval 0.3 × 0.7mil
• Cantilever: Aluminum Pipe
• Vertical Tracking Degree: 20 degrees
• Overall Dimensions: 17.0(W) × 17.2(H) × 30.5(D) mm
• Weight: 5.7 g
• Head-shell Weight: 10g (including nuts, screws, and wires)

Analog Output section

• Connectors: RCA jack × 1 pair (Gold-plated)
• Output Voltage: PHONO 3.5mV +/-3dB, LINE 155mV (-16dBV)

Bluetooth® section

• Bluetooth version: 5.2 (DUAL MODE)
• Profile: A2DP
• Codecs: SBC, Qualcomm® aptX™ audio, Qualcomm® aptX™ Adaptive

Operation Power

• AC Adapter Input: AC 100 - 240V, 50/60Hz
• AC Adapter Output: DC 12V 500mA

Others

• Power Consumption: 1.5W or less
• Standby Power: 0.5W or less
• Dimensions (including protrusions): 420(W) × 117(H) × 356(D) mm / 16.5"(W) × 4.6"(H) × 14.0"(D)
• Weight: 4.9kg / 10.8lbs
• Operating Temperature Range: 5°C to 35°C
