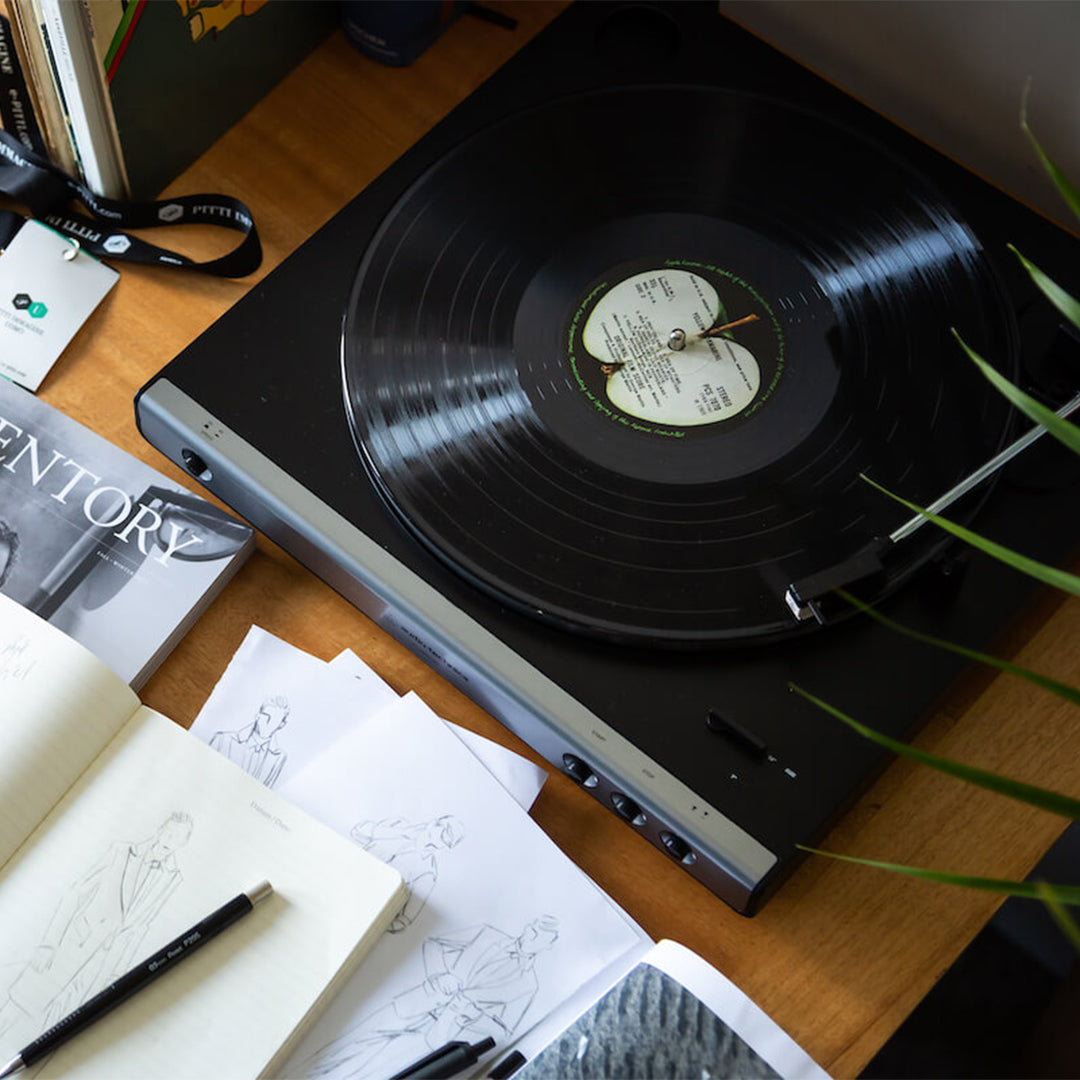

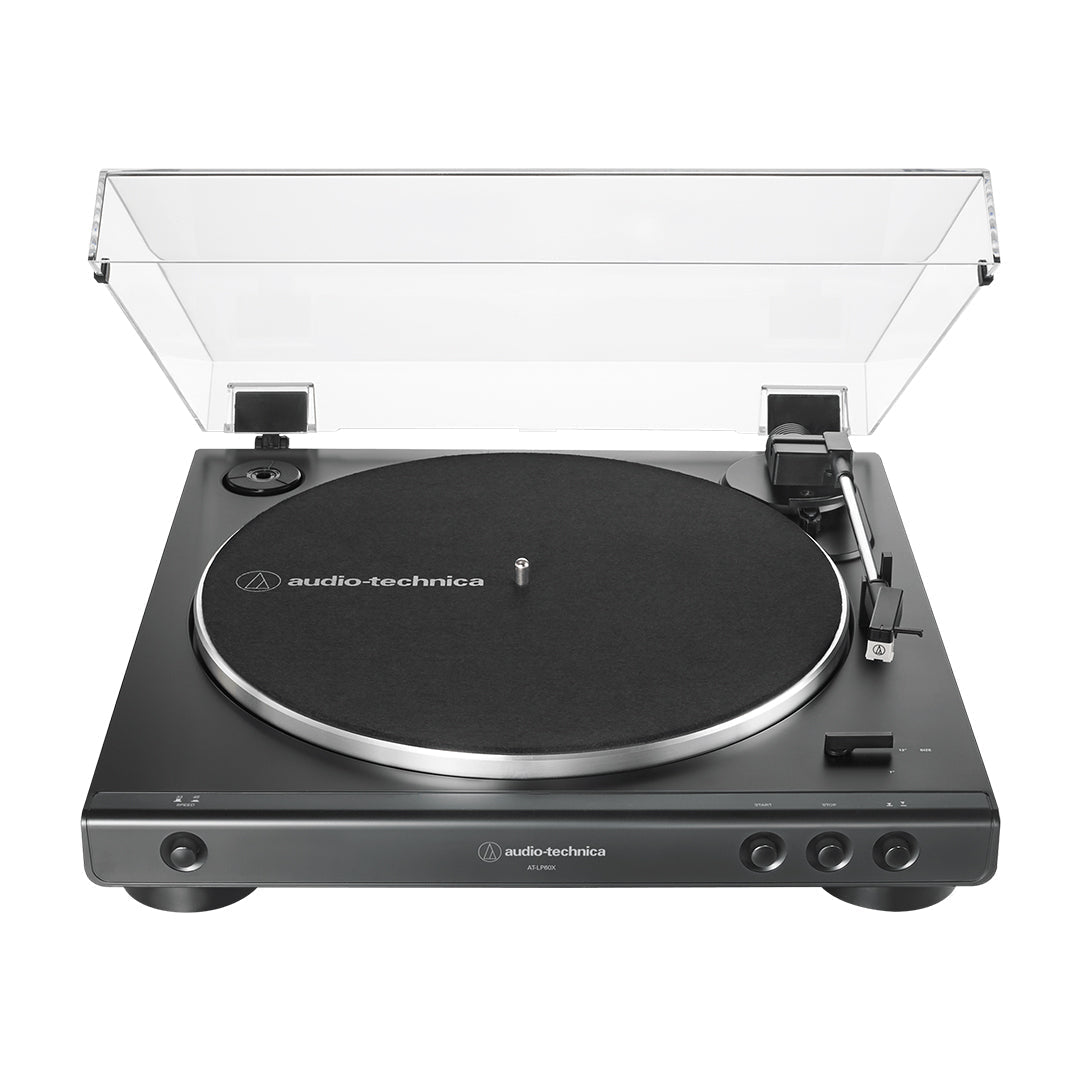

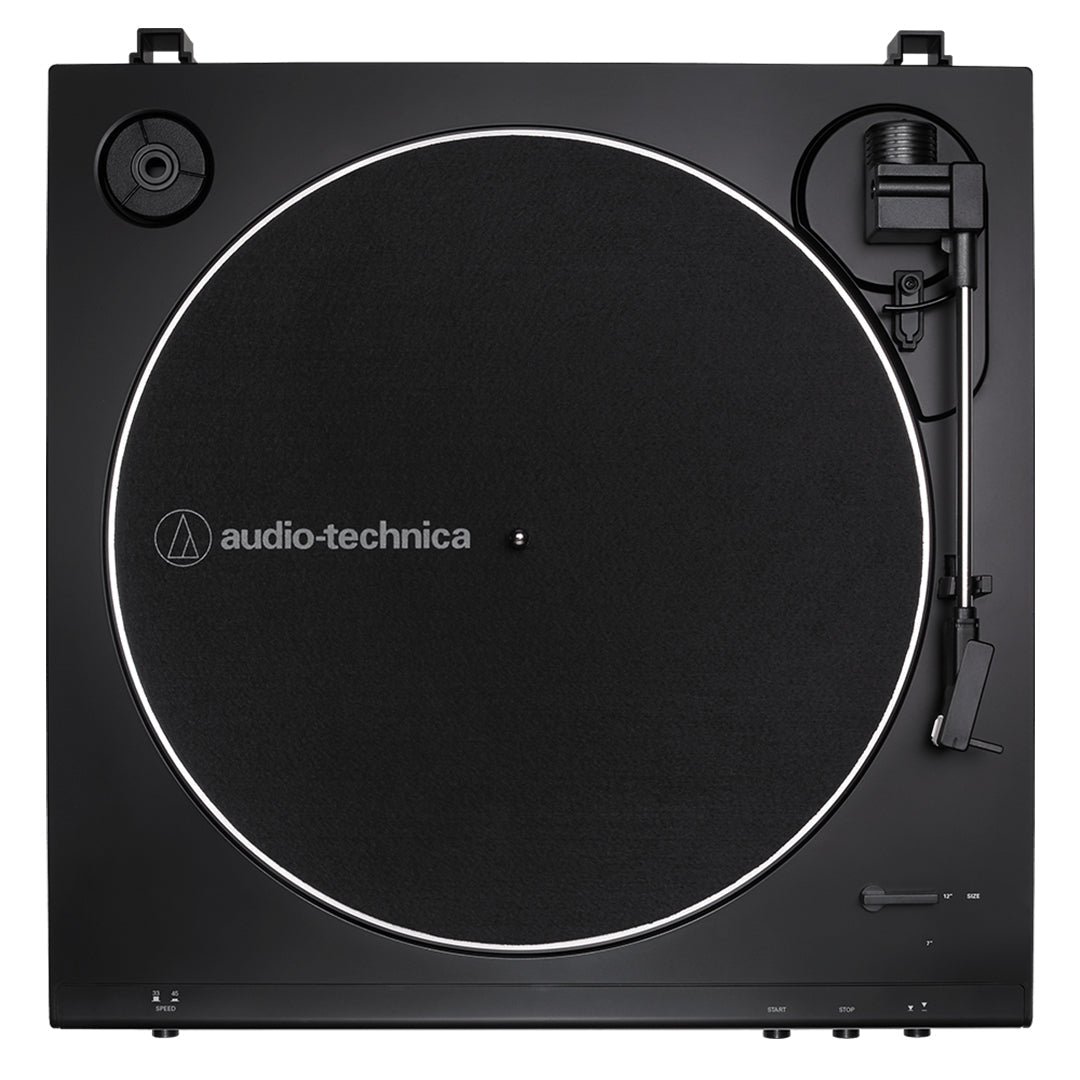

Audio-Technica LP60X Fully Automatic Belt-Drive Turntable

Whether you’re just getting into records, rediscovering a record collection long since buried away or simply adding a turntable to complete your system, the AT-LP60X fully automatic belt-drive turntable is an excellent choice.

This affordable, easy-to-use turntable plays both 33-1/3 and 45 RPM records and, with its built-in switchable phono preamp, can be connected directly to your home stereo, powered speakers, computer and other components, whether they have a dedicated phono input or not.

Features

• Experience the high-fidelity audio of vinyl
• Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
• Anti-resonance, die-cast aluminum platter
• Redesigned tonearm base and headshell for improved tracking and reduced resonance
• Integral Dual Magnet™ phono cartridge with replaceable diamond stylus (ATN3600L)
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• Built-in switchable phono pre-amplifier for phono- or line-level output


An update of the popular AT-LP60, the ATLP60X features a redesigned tonearm base and headshell to improve tracking and reduce resonance. Noise is further reduced by the inclusion of an AC adapter that moves the AC/DC conversion outside of the chassis where its impact on the signal chain is limited.

Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the AT-LP60X’s Dual Magnet™ cartridge with replaceable stylus. The cartridge is integrated into the headshell for assured performance and ease of setup.

• Type: Fully Automatic
• Motor DC: Servo Controlled
• Drive Method: Belt Drive
• Speeds: 33-1/3 RPM, 45 RPM
• Turntable Platter: Aluminium
• Wow and Flutter: Less than 0.25% (WTD) @ 3 kHz (JIS)
• Signal-to-Noise Ratio: >50 dB (DIN-B)
• Output Level: Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 150 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
• Power Supply: Requirements 115/230V AC, 60/50 Hz
• Dimensions: 359.5 mm x 97.5 mm x 373.3 mm
• Weight: 2.6 kg
