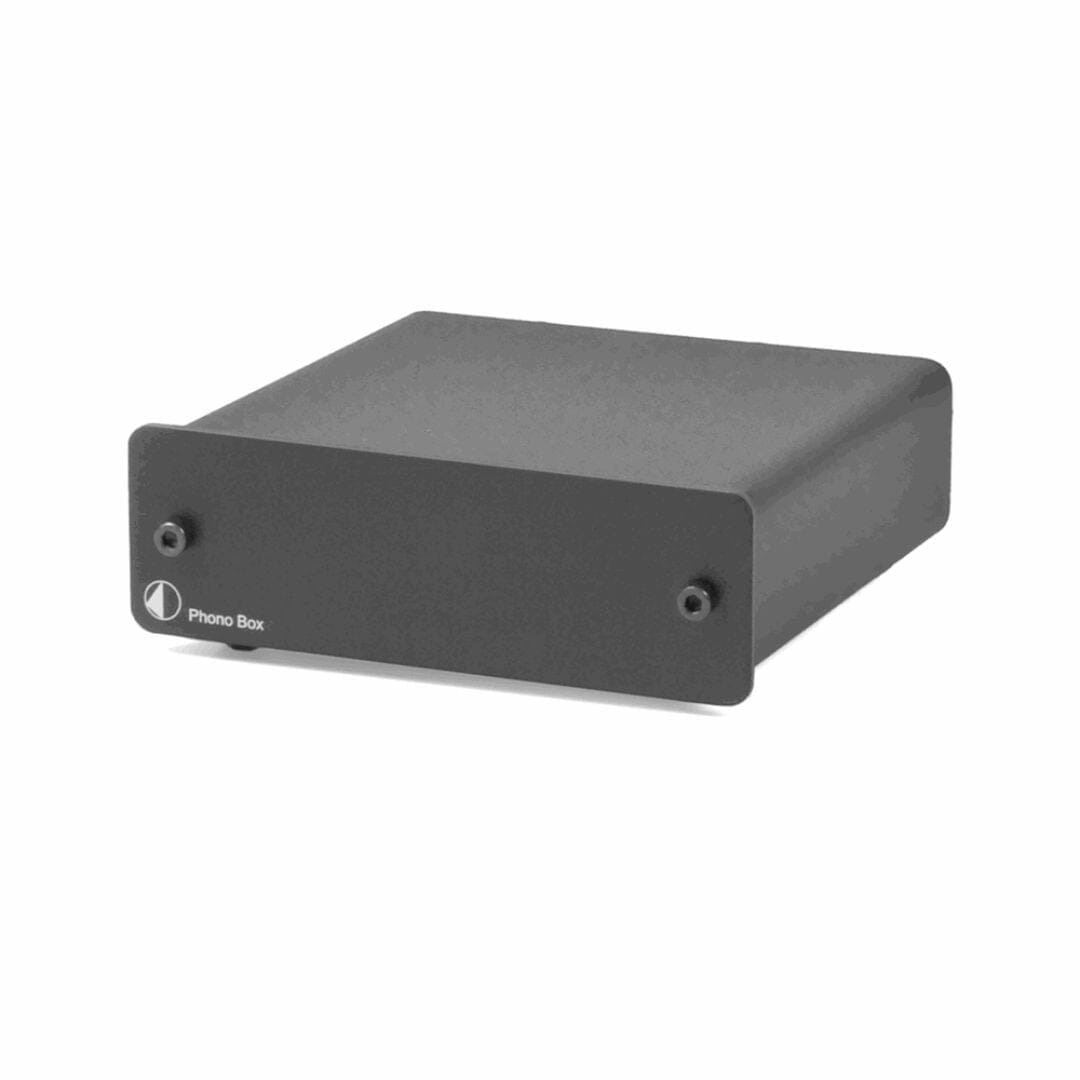

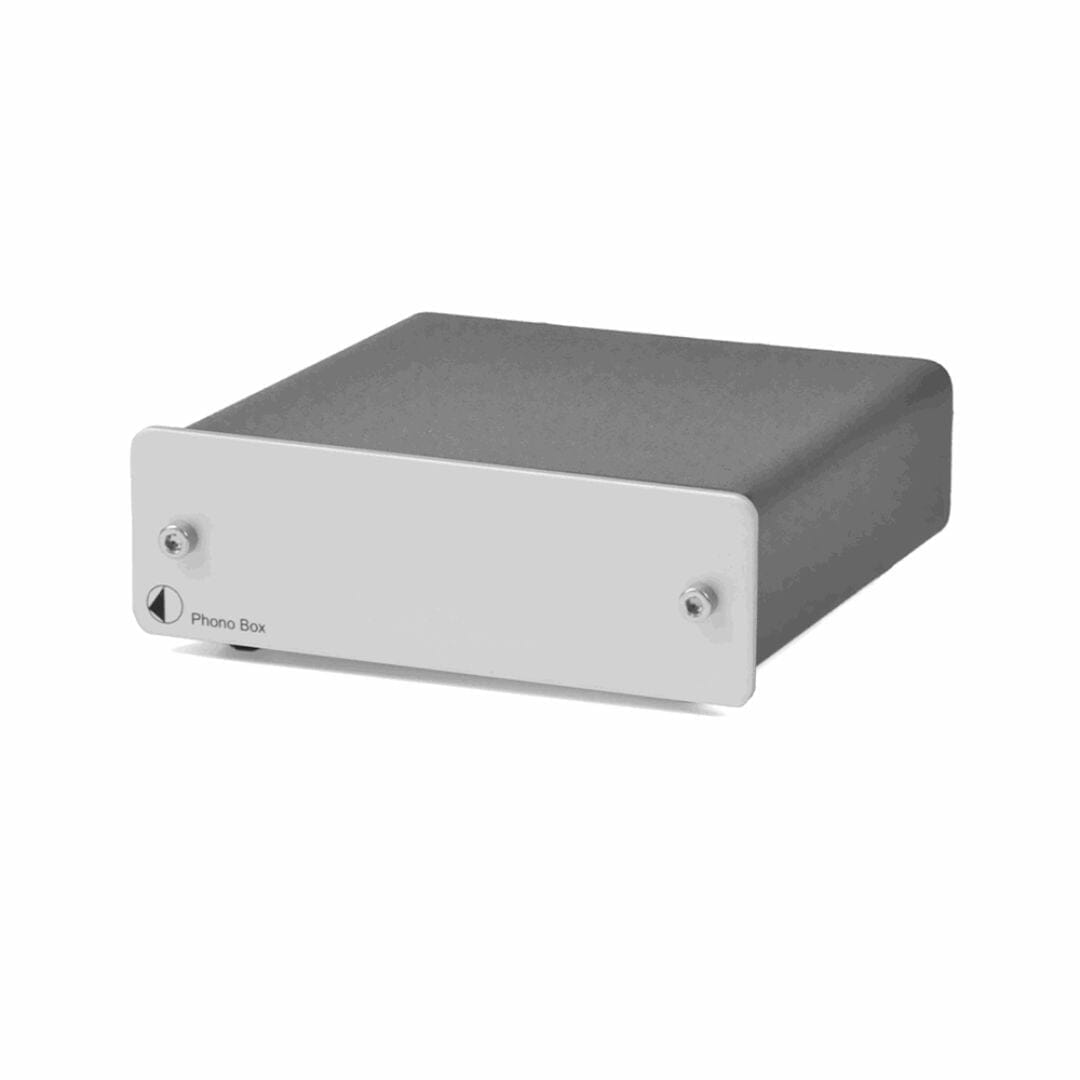

Pro-Ject Phono Box Turntable Pre-Amplifier

The Pro-Ject Phono Box is one of the most popular phono stages on the market today. Combining affordability, simplicity and great sound; it's a simple addition that helps turntables sing.

Boasting a sophisticated internal design that employs low-noise ICs and precise RIAA equalisation circuitry, the Phono Box is often found used with far more expensive turntables.

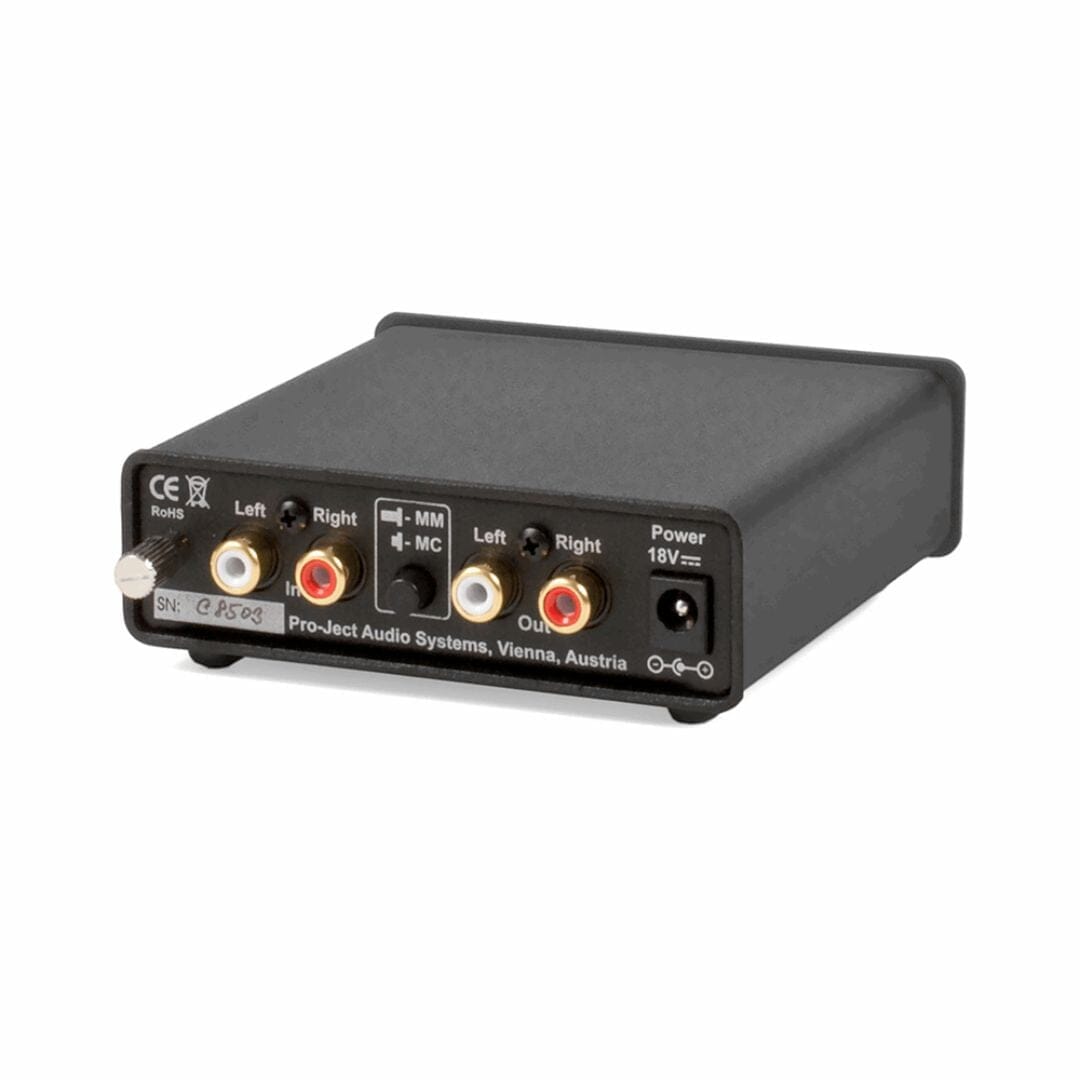

Simply connect the In and Output cables, push the switch to select Moving Magnet or Moving Coil operation (depending on your turntable cartridge), plug it in and off you go.

The small size of the Phono Box allows for discrete placement near your turntable or behind an existing system.

• Input Impedance, MM: 47kohms/120pF
• Input Impedance, MC: 100ohms/120pF
• Gain, MM: 40dB
• Output Voltage Typically: 300mV/1kHz at 3mV/1kHz (MM input)
• Gain, MC: 60dB
• Output Voltage Typically: 300mV/1kHz at 0,3mV/1kHz (MC input)
• Max. Output: 9,5V (1kHz)
• Noise Floor, MM: 86dB (94dB - A weighted)
• Noise Floor, MC: 68dB (75dB - A weighted)
• THD, MM: 0,01%
• THD, MC: 0,05%
• RIAA-Equalisation Curve Accuracy: 20Hz - 20kHz / max. 0,5dB
• Outboard Power Supply: 18V/200mA DC, suitable for your country's mains supply
• Standby Power Consumption: < 1 watt
• Dimensions W x H x D: 103 x 36 x 103 (109 mm with sockets)
• Weight: 540g

• Pro-Ject Phono Box User Manual
