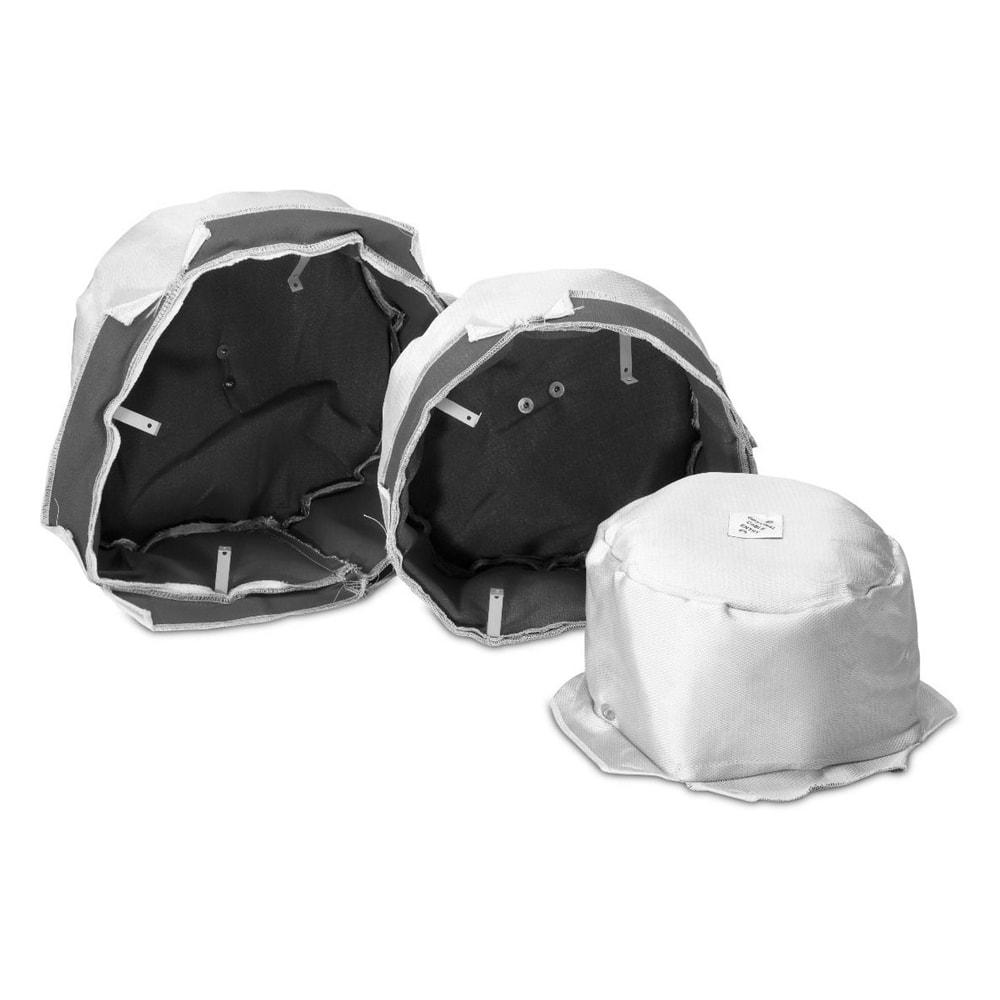

Q Acoustics Qi 80CF 8" Acoustic Ceiling Speaker Fire Hood (Each)
All of the items on our website are shipped from our UK warehouse, based on the South Coast near Portsmouth.
We use the top couriers including DPD & Parcelforce in order to get your product to you ASAP.
UK MAINLAND DELIVERY
| FREE | |
|
Standard Delivery - Orders Over £50 Usually Delivered Within 2-3 Working Days |
FREE |
|
Standard Delivery - Orders Under £50 Usually Delivered Within 2-3 Working Days |
£3.99 |
|
Next Day Delivery (Order By 2PM) Usually Delivered Next Working Day |
£6.99 |
All orders are sent on a tracked & signed for service.
INTERNATIONAL DELIVERY
Unfortunately we are currently only shipping to mainland UK and are currently not shipping to Ireland.
We offer a 30 day returns period whereby you can return your product for any reason*
30 DAY RETURNS
If you do not need or want your item you can return it to our UK warehouse within 30 days from your purchase for a refund (excl. any premium shipping costs).
Returns must be sent back at your cost using a tracked & insured courier service. We recommend Parcel Monkey.
RETURNS ADDRESS:
|
FAO Returns TECH4 Unit P1, Pegasus Building |
* Products must be kept in original packaging in as new condition.
WARRANTY & FAULTY GOODS
All products on our website come with a 1 year return to base warranty (unless otherwise stated).
If your item has become faulty within this time frame, or if it has arrived damaged, please contact us for further information.
If your item is deemed faulty by our tech team then we will need it back for testing and repair or replacement under warranty.
When returning goods please ensure you include your full name, details and order number. We will reimburse shipping costs of up to a maximum of £15.
EXCHANGES
We do not offer exchanges however you are welcome to return your item for a refund and purchase the new item separately.
Product Overview
Designed to cover the rear of in-ceiling and in-wall speakers, a fire and acoustic hood is a legal requirement for many new buildings.
But whether legally required or not, we'd recommend them as a safety precaution.
Using a fire and acoustic hood helps resist the spread of fire through the floors of a building and to reduce the transmission of noise to adjacent rooms and properties.
It's a requirement for all speakers that are installed below any habitable rooms and escape routes.
Maintaining Fire Ratings
The hoods maintain fire rating integrity of the ceiling to which they are fitted, thus enabling 30 minutes or 60 minutes of fire rating to be maintained.
Tested at the UK Building Test Centre and complies with Part B and Part E of UK building regulations - reports are available on request.
Reducing Sound Leakage
When a speaker is installed into a ceiling or wall it can help transmit unwanted sound, potentially into another property, even when the speaker is not in use.
Adding these hoods effectively restores the acoustic integrity of the ceiling or wall.
When the speaker is in use it can also reduce the rear transmission of sound by around 10dB over the mid to high frequency range.
Preventing the transmission of low (bass) frequencies is a specialist field and may require substantial additional treatment.
Specifications
- Woven Glass Fabric: Thickness - 0.40mm, Weight/m² - 430 g/m²
- Warp count: 1360 d’tex
- Finish: Starch weave lock
Sponge Properties
- Physical form/appearance: Solid, voluminous material, more or less elastic.
- Specific gravity: 10-600 kg/m³
- Solubility in water: Insoluble
- Odour: None or mild odour
- Flash ignition point: Between 315ºc to 370ºc
- Decomposition temperature: Above 180ºc
- Thermal energy: 28 000 KJ/kg
- Stability and reactivity: The product is stable at temperatures between -40c and +12ºc
- Auto-ignition point: Between 370ºc to 427ºc (ASTM D 1929)
Test Details
Complies with Part B and Part E UK building regulations
- Integrity Insulation
- Trada FR 1739 240 mins 46 mins
- BTC 10891F 88 mins N/A
External Dimensions
- Qi 50CF - Dia. 270mm, Depth 100mm
- Qi 65CF - Dia. 290mm, Depth 100mm
- Qi 80CF - Dia. 320mm, Depth 110mm
- Qi 65RF - Dim. 270mm x 350mm, Depth 100mm
- Qi 80RF - Dim. 320mm x 400mm, Depth 110mm
- Qi 65 LCRF - Dim. 270mm x 540mm, Depth 110mm
What You Get
1 x Q Acoustics Install Qi 80CF 8" Acoustic Ceiling Speaker Fire Hood
Specifications
- Qi 80CF - Dia. 320mm, Depth 110mm
- Woven Glass Fabric: Thickness - 0.40mm, Weight/m² - 430 g/m²
- Warp count: 1360 d’tex
- Finish: Starch weave lock
SPONGE PROPERTIES
- Physical form/appearance: Solid, voluminous material, more or less elastic.
- Specific gravity: 10-600 kg/m³
- Solubility in water: Insoluble
- Odour: None or mild odour
- Flash ignition point: Between 315ºc to 370ºc
- Decomposition temperature: Above 180ºc
- Thermal energy: 28 000 KJ/kg
- Stability and reactivity: The product is stable at temperatures between -40c and +12ºc
- Auto-ignition point: Between 370ºc to 427ºc (ASTM D 1929)
TEST DETAILS
- Complies with Part B and Part E UK building regulations
- Integrity Insulation
- Trada FR 1739 240 mins 46 mins
- BTC 10891F 88 mins N/A
